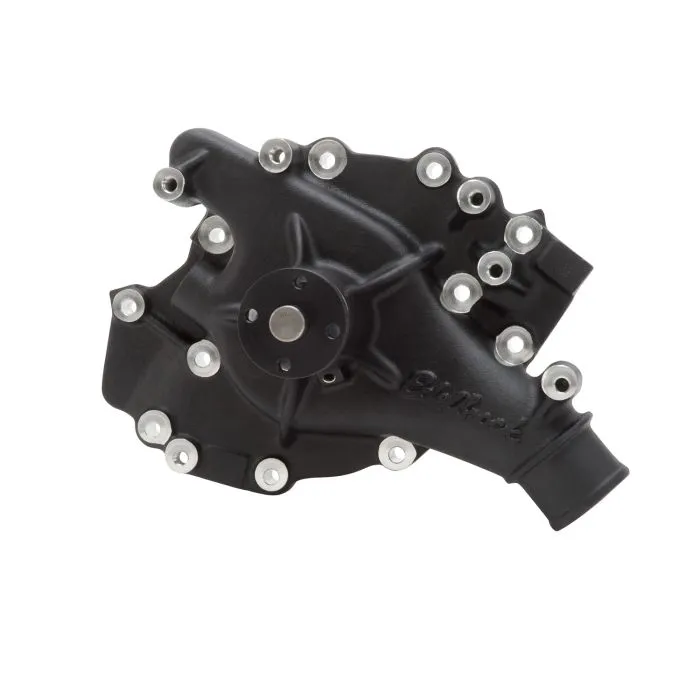

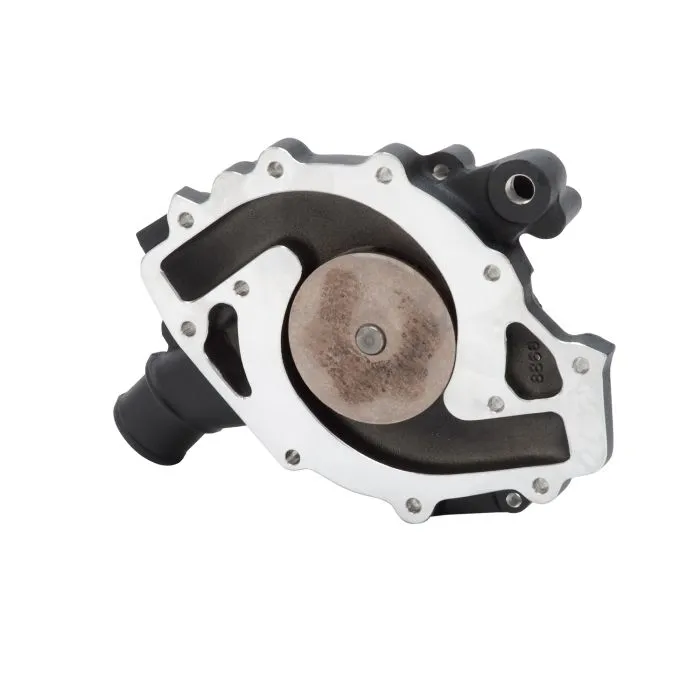

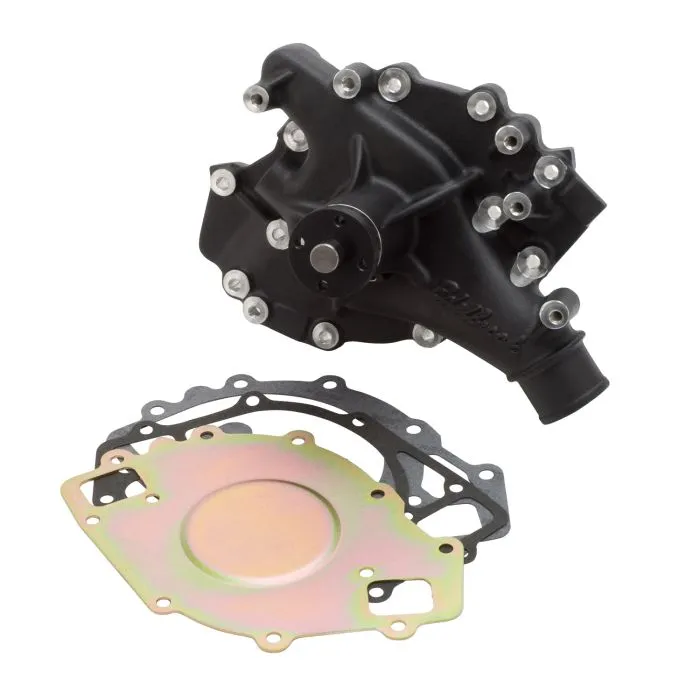

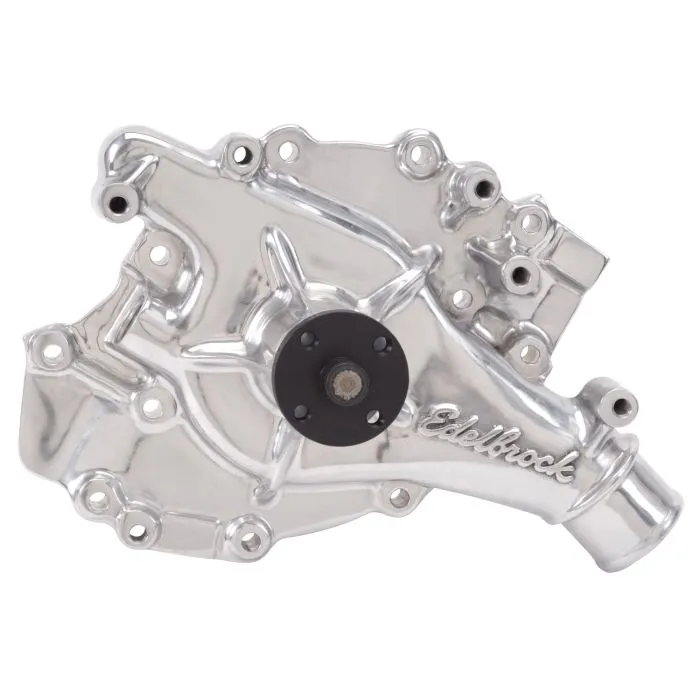

Name: Edelbrock Water Pump Ford 429/460 (1970-1992) Polished / Black Finish
SKU: 513910

Edelbrock #8876 / #88663 Water Pump 429-460 Ford Big Block 1970-92 Polished Ideal To Prevent Overheating In Street Rods And Street Machines

Specs

Application: Application Specific
Thermostat And Housing Included: No
Mounting Hole Quantity:

Polished: 4
Black: 11

Housing Material: Aluminum
Impeller Material: Powdered Metal
Installation Warnings: Yes
Hub Hole Quantity: 6
Fan Clutch Included: No
Impeller Vane Quantity: 6
Includes Back Housing: Yes
Related Cooling Fan Components: No
Casting Number: 8866
Availability Note: Available to Order
Warranty: 12 Months
Hub Height: 5.500 in
Impeller Rotation: Standard
Outlet Quantity: 1
Pulley Included: No
Water Pump Drive Type: V-Belt

Install Notes

Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing; The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft; Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit; So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty; The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump

Description and Information

Edelbrock #8876 Water Pump 429-460 Ford big block 1970-92 polished / bllack ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
